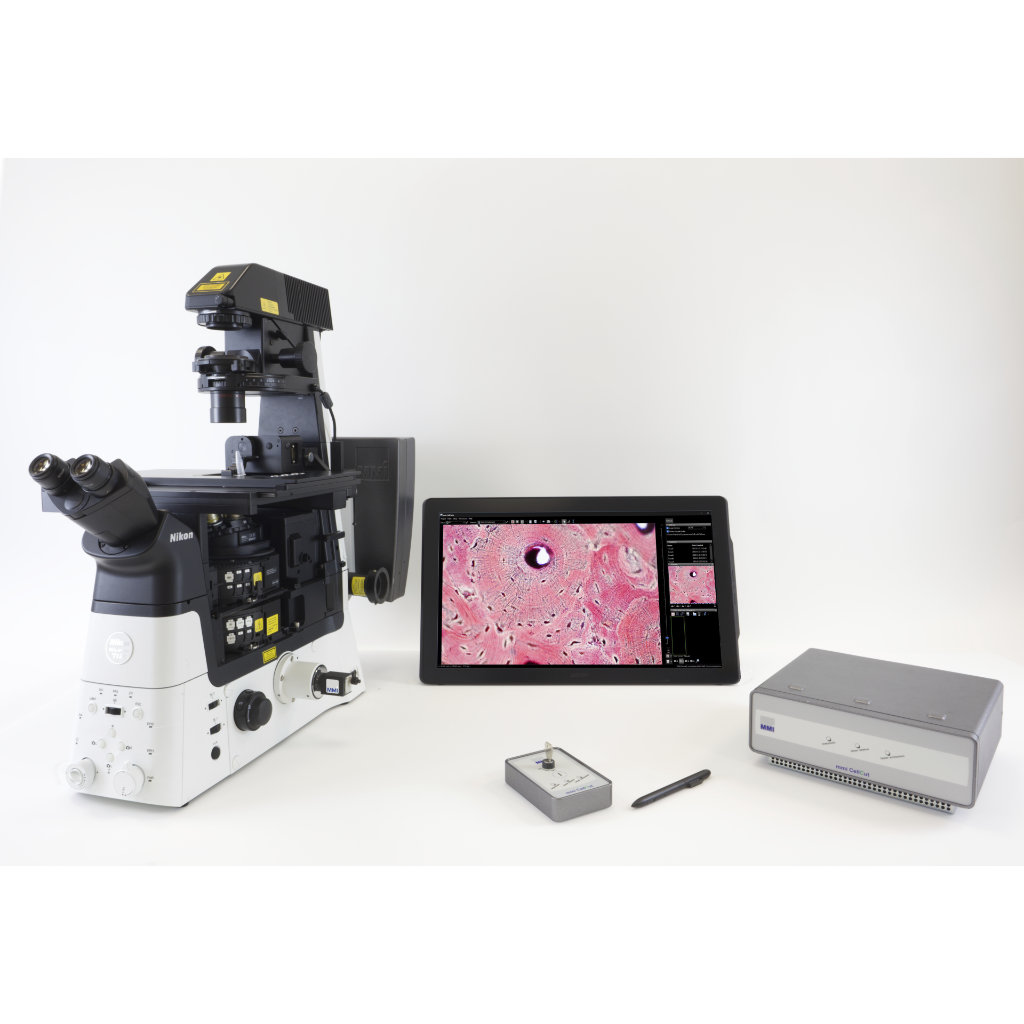

MMI CellCut High Power
• Laser-based microdissection
• Gentle and contamination-free isolation
• For cutting very hard material such as teeth, bones or forensic tapes
The MMI CellCut Universal is a user-friendly laser microdissection tool to isolate groups of cells, single cells, and cell components for analysis across a wide range of applications. The CellCut is contamination-free, reproducible and reliable and optimized for high-quality and quantity DNA, RNA, protein recovery.
More information on the CellCut Product Page
High Power Laser:
- For cutting very hard material such as teeth, bones or forensic tapes
- Wavelength 349 nm
- Maintenance free
- Extremely sharp focus due to computer-simulated optics
- Safety devices and eye protection filters
Laser technology:
- Actively Q-switched
- Pulse duration <500ps
- Pulse energy >2µJ
- Pulse frequency up to 4kHz MMI Isolation

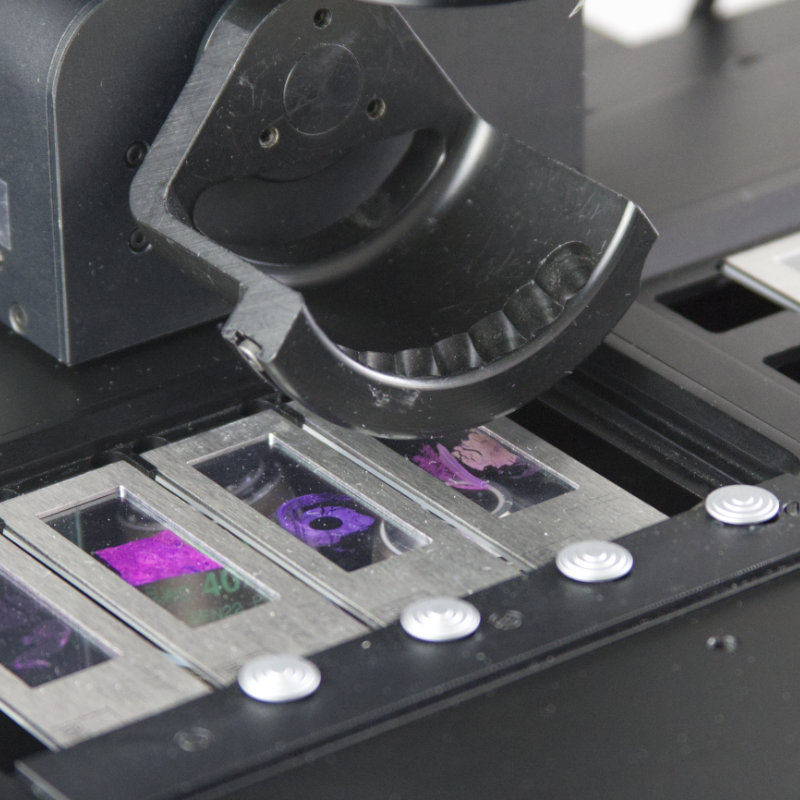

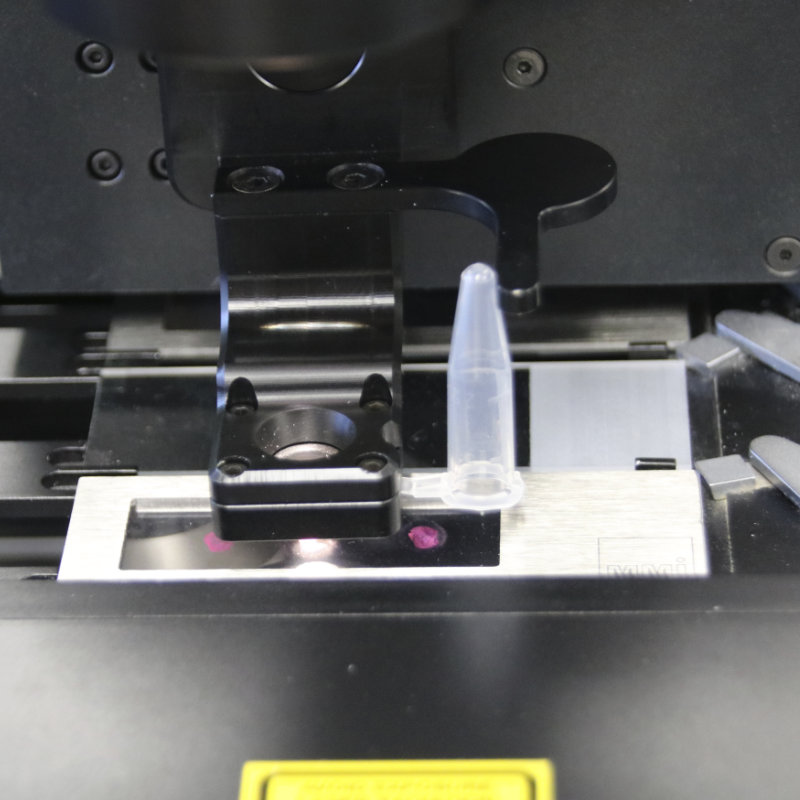

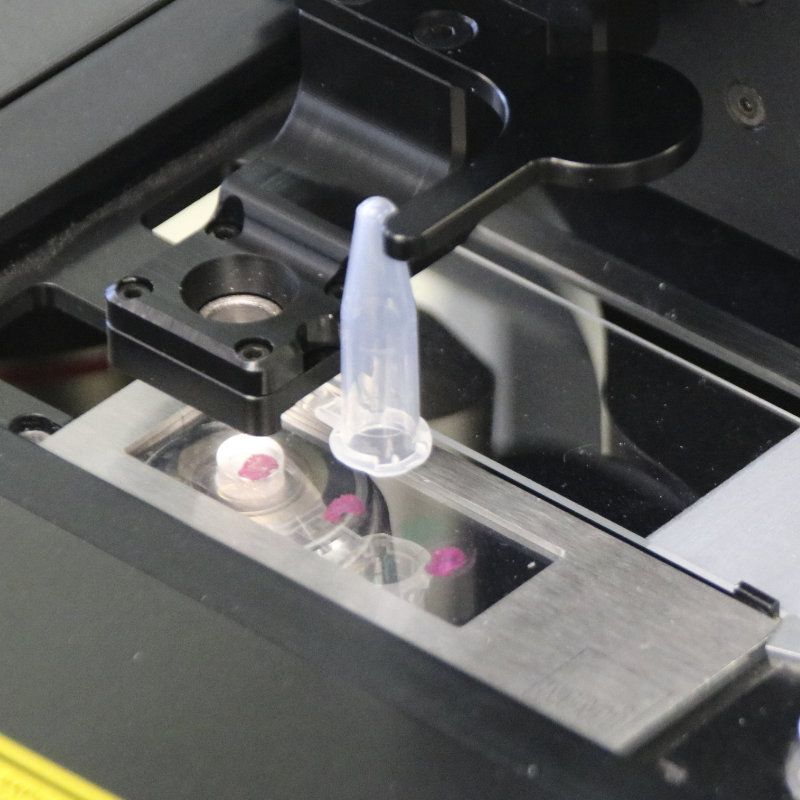

Cap & MMI Single CapLift
- Patented, contamination-free method for isolation of microdissected areas using adhesive cap technology with pre-defined target positioning (PTP) and positive sample inspection
- Software-controlled positioning, lifting and lowering of adhesive cap
- Removable Plug & play module for full access to the microscope stage
- Adjustable contact pressure between cap and slide
-
3 cap holders with magnetic mount for 0.2ml, 0.5ml and 1.5ml MMI
CellCut software functions
- Computer-controlled laser power, focus position and cutting speed
- Free-hand drawing or predefined figures: circles, squares, ellipses
- Multi-segment drawing for objects larger than the field of view
- Automatic cutting of marked areas and collecting of dissected samples, including multi-cutting option
- Group cutting functions incl. group statistics
- Automatic documentation with immediate access to report • Serial section function: allows the marking of target regions onto one or more unstained sections by using a stained top section as a template. Differences in shape, angle and position are automatically compensated by the software giving highly accurate results.
- Z-Drill function: Cutting of wet and thick tissue without the need for increased laser power. The laser is refocused through the sample and so facilitates cutting in a spiral.
