    Capillary based Cell-Sorting:

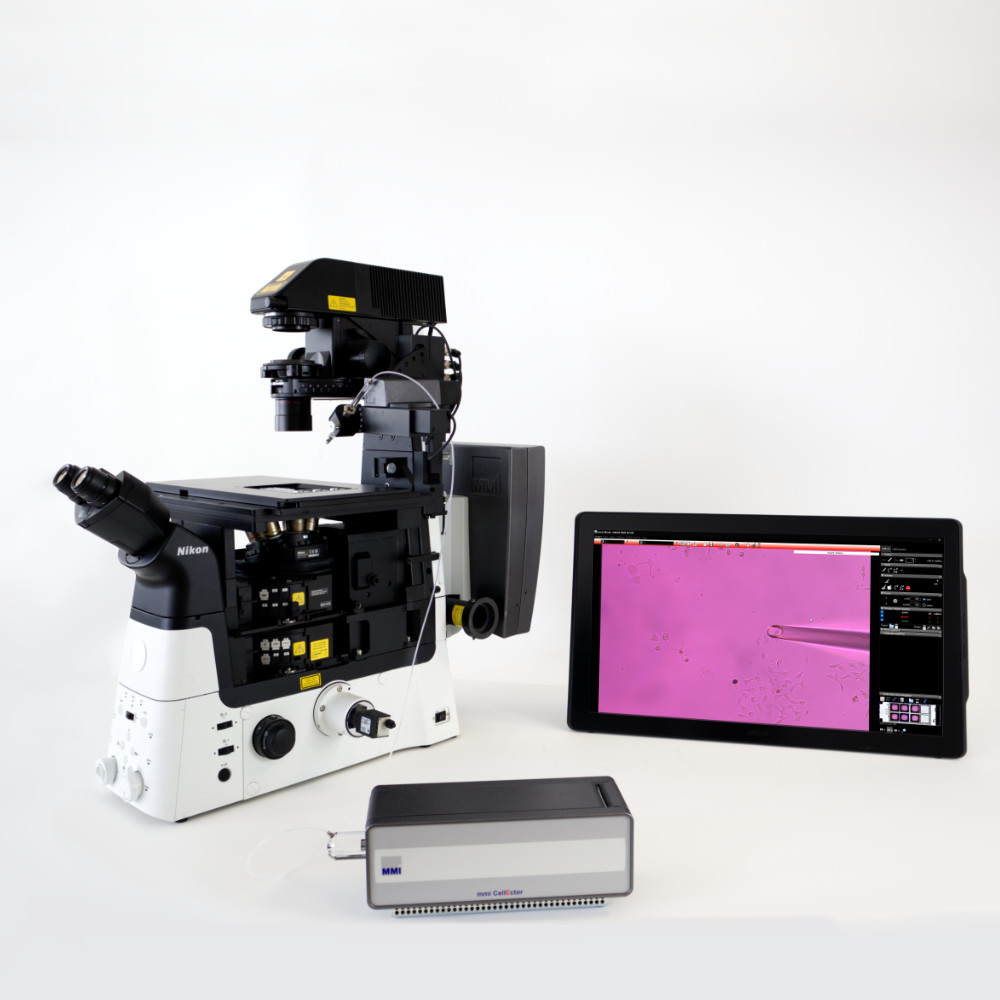

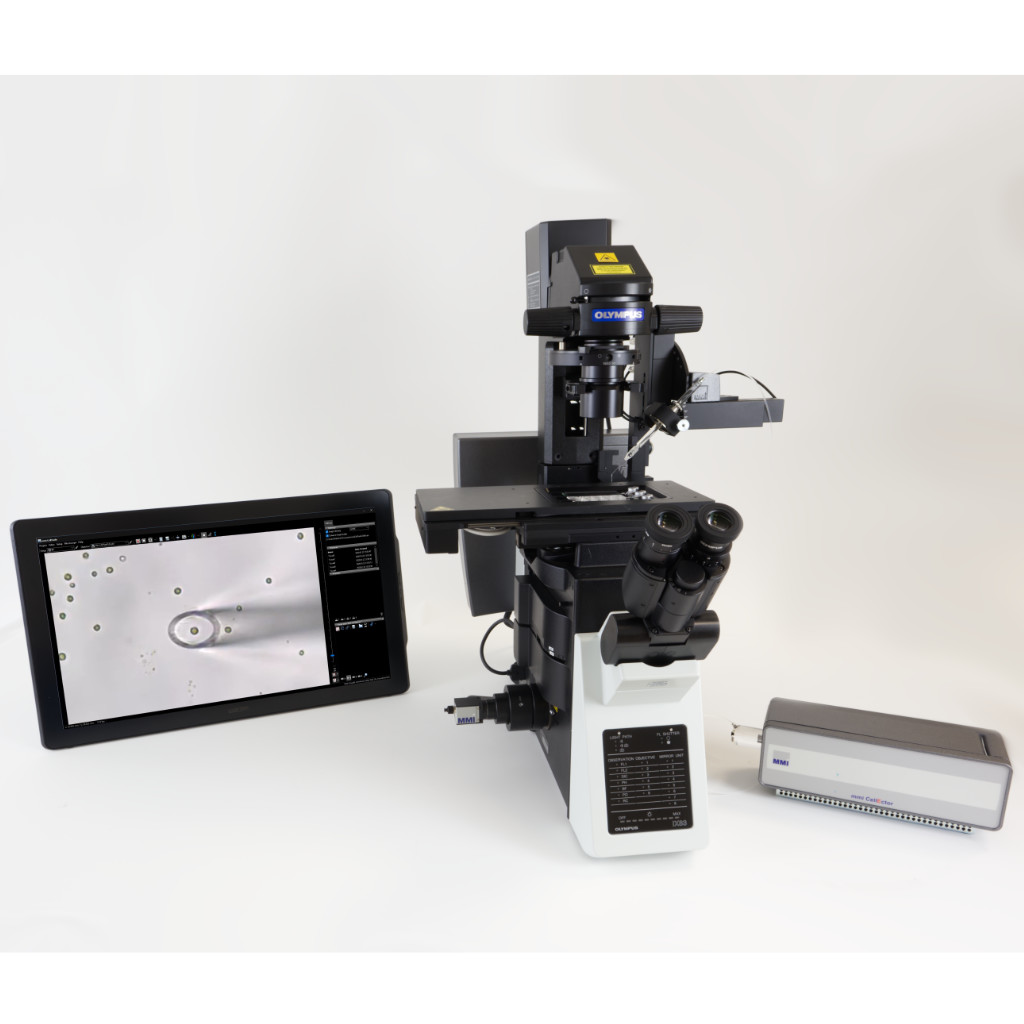

    The MMI CellEctor is an integrated instrumentation solution for the fully manual or automated recognition, aspiration and deposition of single cells in suspension onto a wide range of cell culture or molecular biology device.

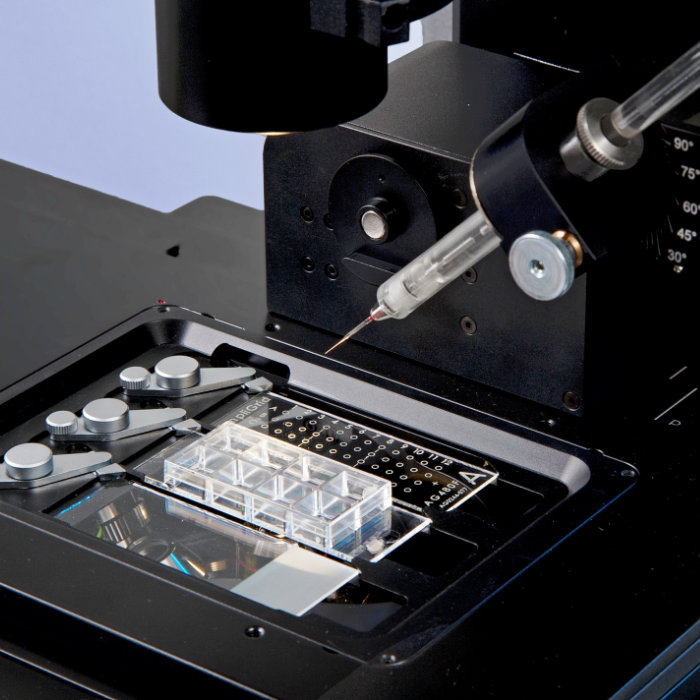

    MMI CellEctor 3D Robot
    • 3 Axis fully motorized and software controlled
    • Easy swivel device to allow full access to the stage
    • Easily adjustable capillary position (both along and around its axis)
    • Patented capillary protection

    High Precision MMI CellPump

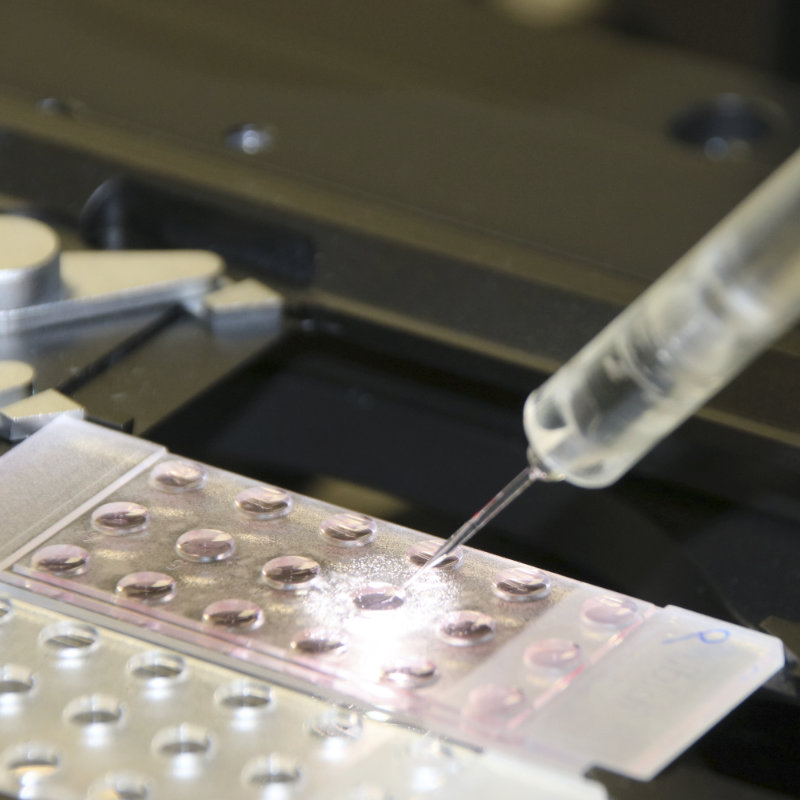

    Motorized and software controlled high precision pump to acquire and deposit cells or particles in defined volumes consisting of:
    • MMI CellPump with 2 nanoliter resolution
    • Pump filling and maintenance accessories
    • Integrated protection from mechanical damage
    • Seamless switching between manual and motorized mode
    • Patented design for easy fill and flush

    MMI CellEctor software functions
    • Fully automated or manual acquisition and deposition of cells
    • Choice of three automation levels including full automation with scanning of the sample and cell recognition
    • Complex movement modes of the capillary (skipping of the sample container wall, user-defined immersion and deceleration distance, deposition at vertical walls)
    • User-defined spacing between the capillary tip and the slide with a dynamic correction to compensate the slide tilt
    • Automated capillary re-focusing options: on the microscope slide or on the capillary tip
    • user-defined pump parameter sets for different capillary diameters

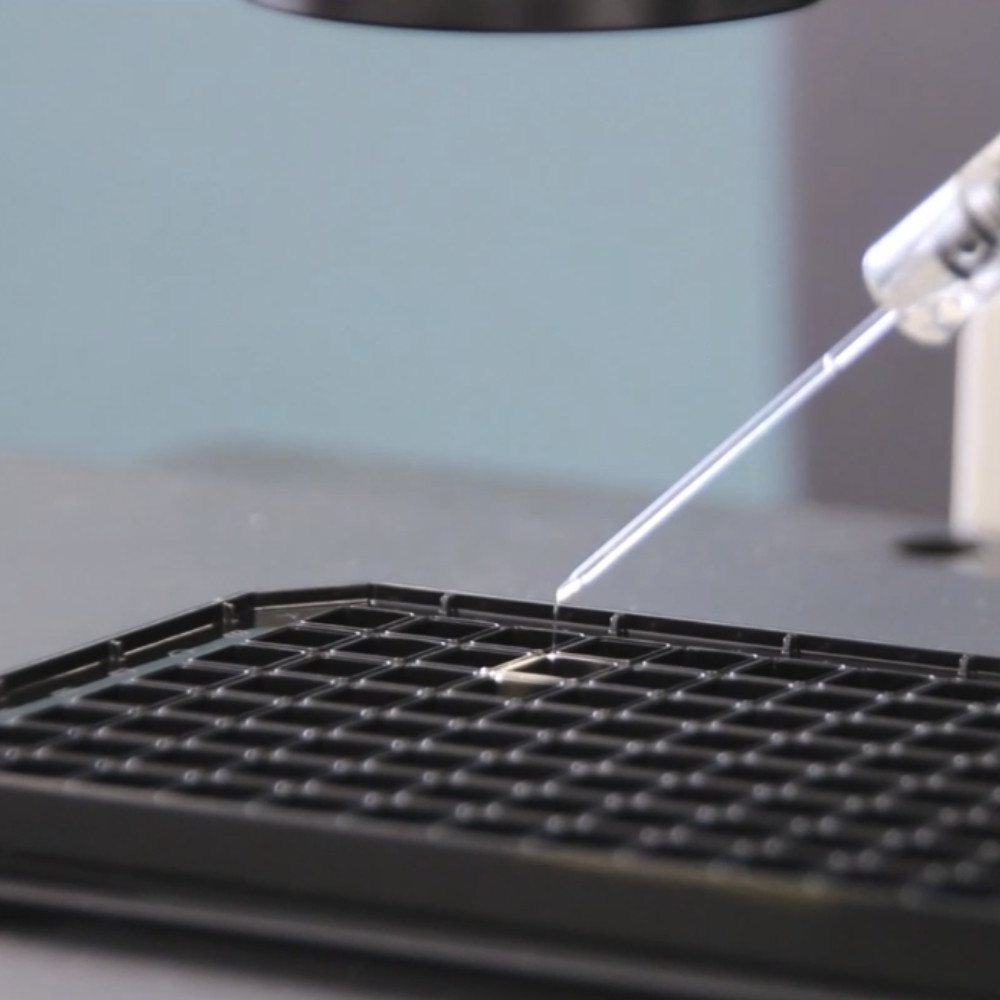

    • Automated dispatching of cells onto either grids or any other device (e.g. a PCR tube, cell culture vessel)
    • Automated inspection of loaded grids (spot by spot) with cells recognition and statistics report
    • Automated reduction of excitation times under fluorescence settings

    MMI Consumables Starter Kit CellEctor
    • Various MMI capillaries and additional MMI consumables for first use

    More information on the CellEctor Product Page



    MMI 3D CellRobot

    • 3 Axis fully motorized and software-controlled
    • Easy swivel device to allow full access to the stage
    • Easily adjustable capillary position (both along and around its axis)

    • Patented capillary protection



    High Precision MMI CellPump
    Motorized  and software-controlled high-precision pump to acquire and deposit cells or particles in defined volumes consisting of:

    • MMI CellPump with 2 nanoliter resolution
    • Pump filling and maintenance accessories
    • Integrated protection from mechanical damage
    • Seamless switching between manual and motorized mode

    • Patented design for easy fill and flush



    Software functions

    • Fully automated or manual acquisition and deposition of cells
    • Choice of three automation levels, including full automation with scanning of the sample and cell recognition
    • Complex movement modes of the capillary (skipping of the sample container wall, user-defined immersion and deceleration distance, deposition at vertical walls)
    • User-defined spacing between the capillary tip and the slide with a dynamic correction to compensate for the slide tilt
    • Automated capillary re-focusing options: on the microscope slide or the capillary tip
    • User-defined pump parameter sets for different capillary diameters
    • Automated dispatching of cells onto either grids or any other device (e.g. a PCR tube, cell culture vessel)
    • Automated inspection of loaded grids (spot by spot) with cell recognition and statistics report

    • Automated reduction of excitation times under fluorescence settings



    Consumables Starter Kit CellEctor

    • Various MMI capillaries and additional MMI consumables for first use
